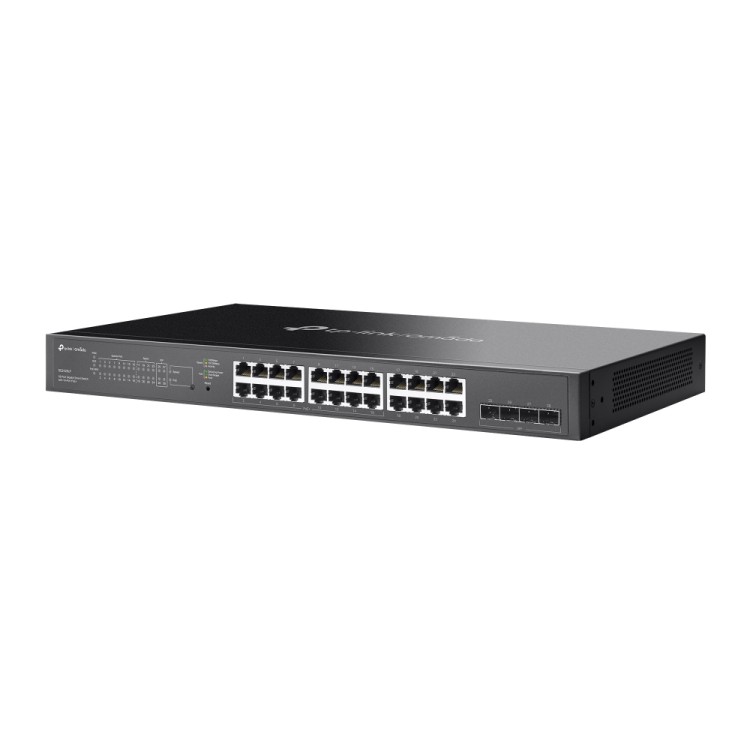

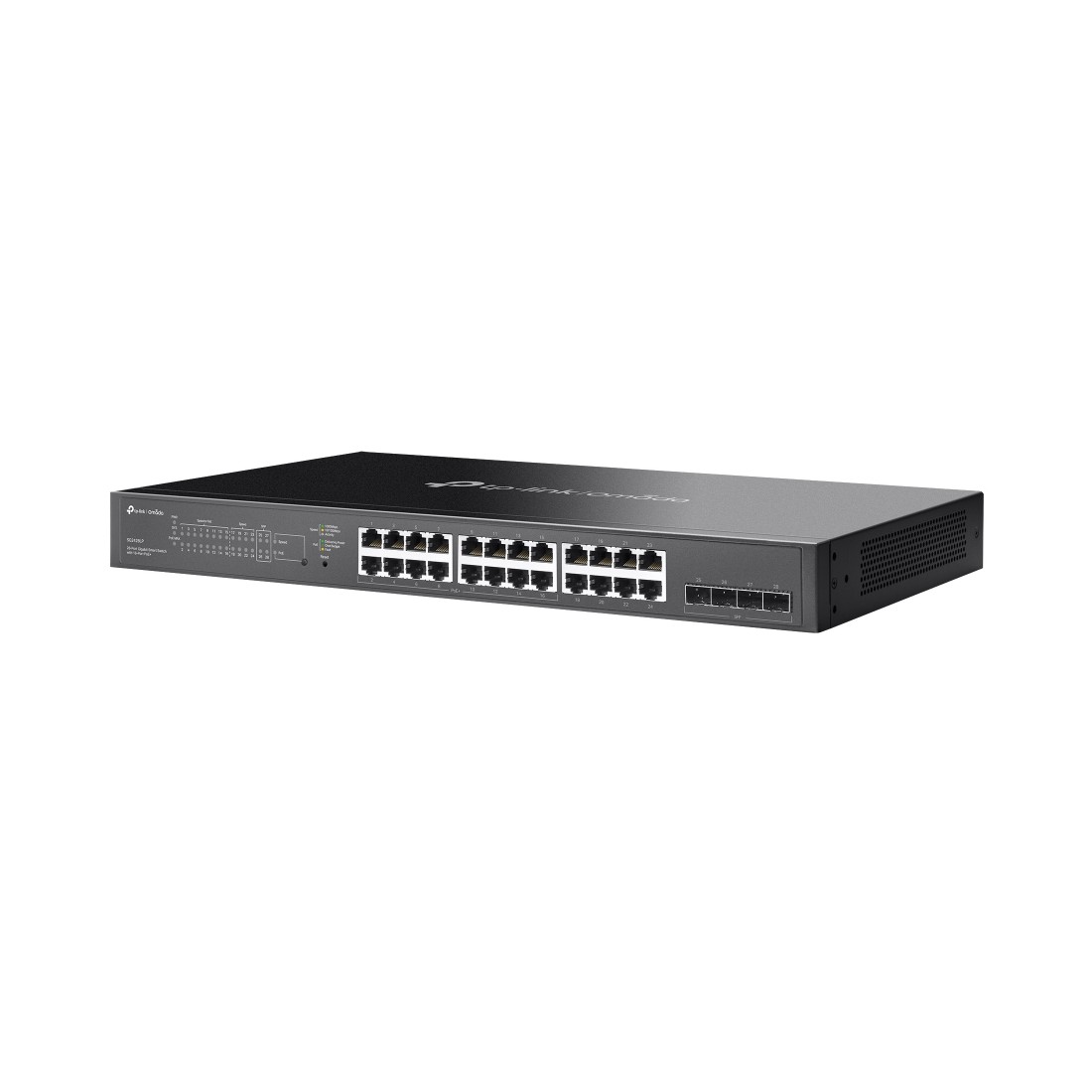

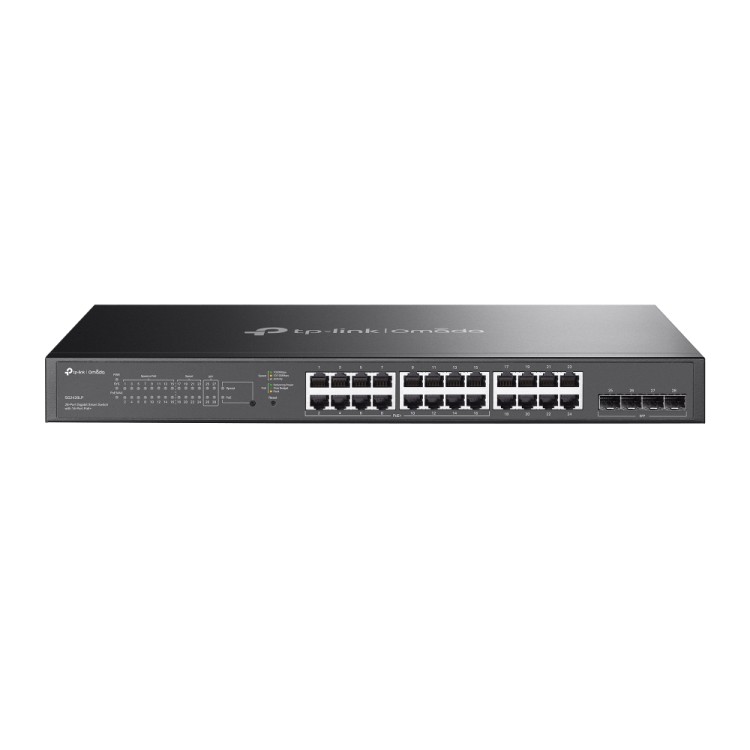

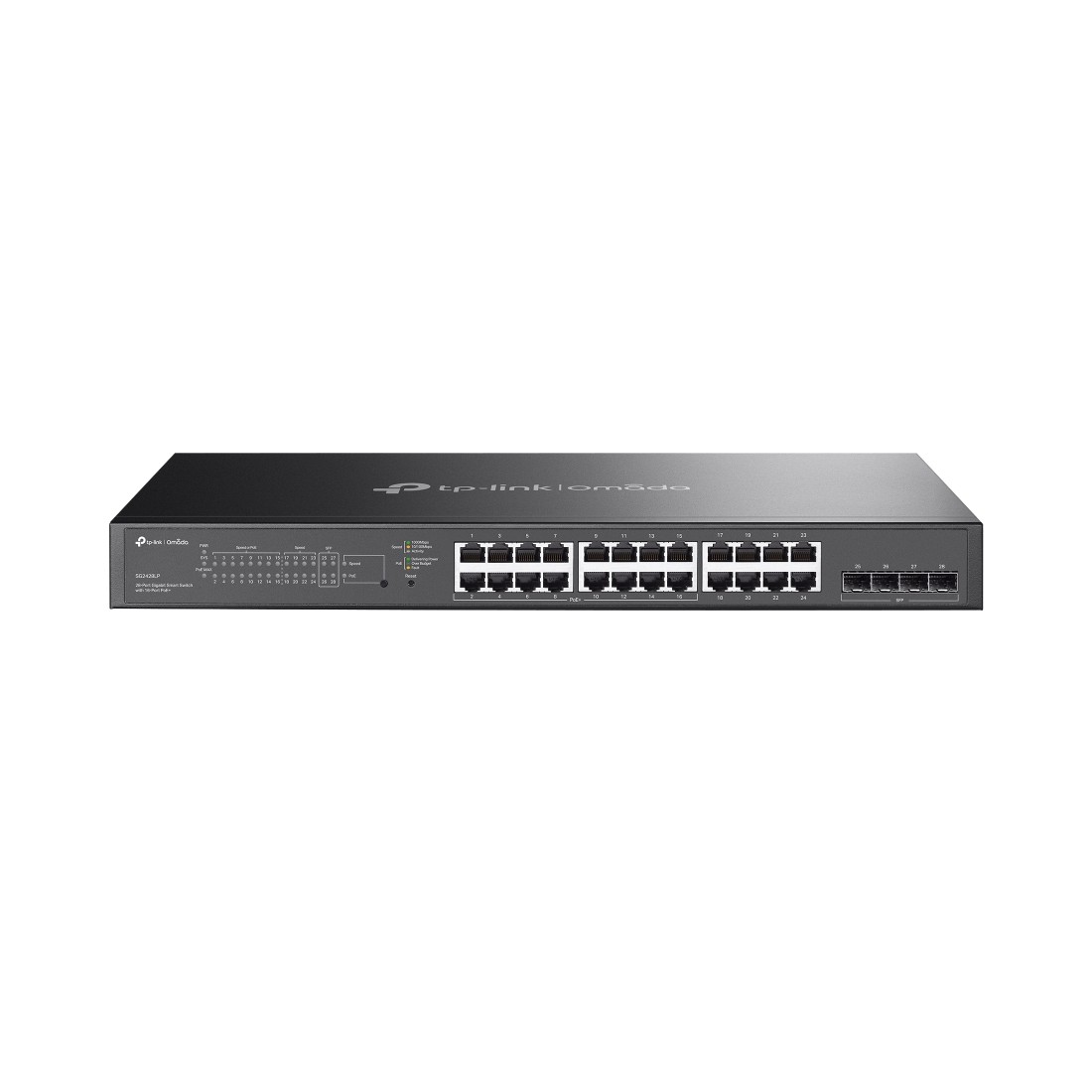

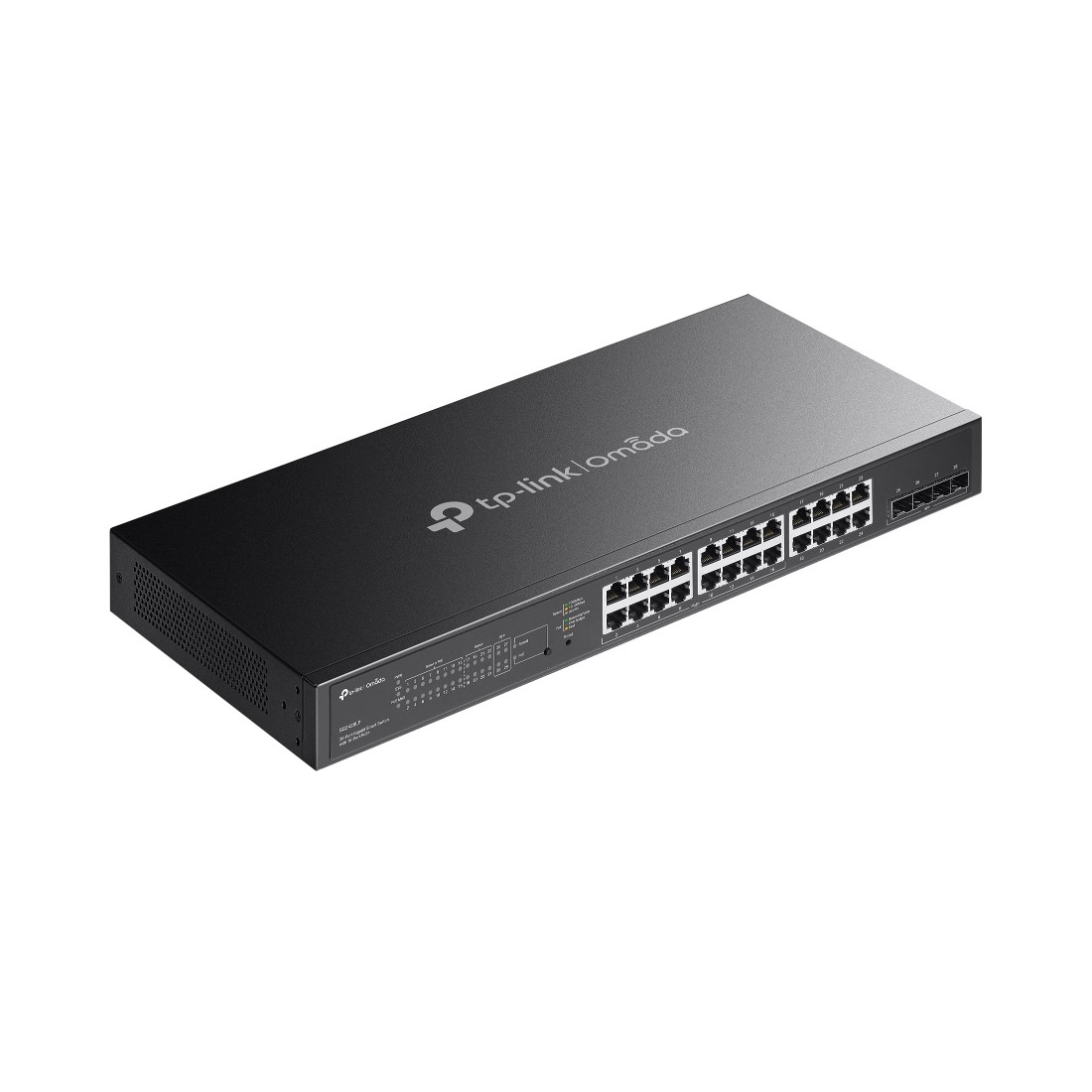

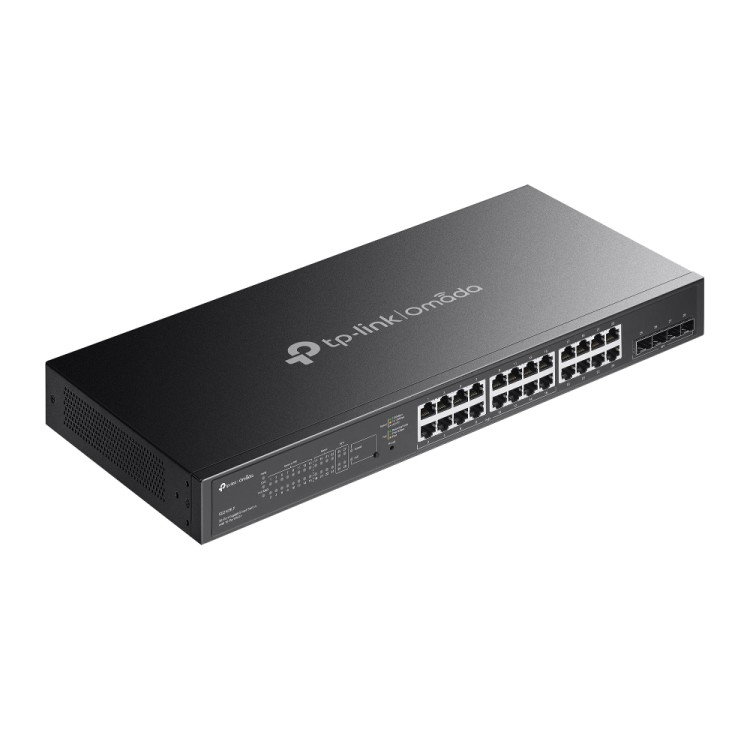

El SG2428LP es un switch de acceso Omada con 24 puertos RJ45 10/100/1000 Mbps y 4 ranuras SFP Gigabit, con 16 puertos PoE+ (802.3af/at) y presupuesto PoE total de 150 W (hasta 30 W por puerto).
Permite gestión centralizada en la nube mediante web o app Omada y también gestión standalone por web, CLI, SNMP y RMON. Incorpora funciones de red como Static Routing, VLAN, ACL, QoS, IGMP Snooping y DDM, y un diseño fanless con carcasa metálica y formato rack.
Combina conectividad Gigabit con alimentación PoE+ integrada para despliegues de APs, cámaras IP o teléfonos IP, manteniendo control de tráfico mediante VLAN/ACL/QoS e IGMP Snooping. La administración puede integrarse en Omada SDN para monitorización y configuración unificada, o realizarse de forma local mediante interfaces estándar (web/CLI/SNMP/RMON). El diseño sin ventilador reduce el ruido operativo y simplifica la instalación en entornos sensibles al sonido.
| Modelo | SG2428LP |
| Puertos (RJ45) | 24 × 10/100/1000Mbps RJ45 Ports |
| Ranuras SFP | 4 × Gigabit SFP Slots |
| Flash | 32 MB |
| DRAM | 256 MB |
| Estándares IEEE (MAC) | IEEE 802.3: Ethernet Media Access Control (MAC) Protocol |
| Estándar IEEE 802.3i | IEEE 802.3i:10BASE-T Ethernet |
| Estándar IEEE 802.3u | IEEE 802.3u:100BASE-X Fast Ethernet |
| Estándar IEEE 802.3ab | IEEE 802.3ab:1000BASE-T Gigabit Ethernet |
| Estándar IEEE 802.3z | IEEE 802.3z:1000BASE-X Gigabit Ethernet (Optical fiber) |
| Estándar PoE | 802.3af/at |
| Puertos PoE | 16, up to 30 W per port |
| Presupuesto PoE | 150 W |
| Fast PoE | YES |
| Perpetual PoE | YES |
| Capacidad de conmutación | 56 Gbps |
| Tasa de reenvío de paquetes | 41.66 Mpps |
| Tabla de direcciones MAC | 8K |
| Buffer de paquetes | 4.1 Mbit |
| Método de transmisión | Store and Forward |
| Número de interfaces IP | 32 |
| Número de rutas estáticas | 32 (IPv4, IPv6) |
| Jumbo Frame | 9 KB |
| Alimentación | 100-240V AC, 50/60Hz |
| Consumo máximo (220 V/50 Hz @ 25 °C) | 184.5 W (with 150 W PD connected) |
| Consumo máximo (110 V/60 Hz @ 25 °C) | 188.8 W (with 150 W PD connected) |
| Consumo en standby (220 V/50 Hz) | 8.3 W |
| Consumo en standby (110 V/60 Hz) | 8.8 W |
| Disipación térmica máxima (220 V/50 Hz @ 25 °C) | 627.23 BTU/hr (with 150 W PD connected) |
| Disipación térmica máxima (110 V/60 Hz @ 25 °C) | 641.92 BTU/hr (with 150 W PD connected) |
| Número de ventiladores | Fanless |
| Protección contra sobretensiones | Service port: ±6 kV in common mode |
| Protección ESD | Air: ±8 kV, Contact: ±4 kV |
| MTBF | 436912 h @ 25 °C |
| Dimensiones (An × Pr × Al) | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
| Peso neto | 3.2 kg (7.05 lbs) |
| Instalación | Rack Mountable |
| Temperatura de operación | -5°C to 45°C (23°F to 113°F). |
| Temperatura de almacenamiento | -40 °C to 70 °C (-40 °F to 158 °F) |
| Humedad de operación | 10% to 90% RH, non-condensing |
| Humedad de almacenamiento | 5% to 90% RH, non-condensing |
| Certificaciones | CE, FCC, RoHS |
| SDN Support | Support Omada Hardware Controller, Software Controller; Automatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule |
| Funciones L3 | 32 IPv4/IPv6 Interfaces; Static Routing (32 IPv4/IPv6 Static Routes); DHCP Server; DHCP Relay (DHCP Interface Relay, DHCP VLAN Relay); DHCP L2 Relay; Static ARP; Proxy ARP; Gratuitous ARP |
| Link Aggregation | Static link aggregation; 802.3ad LACP; Up to 8 aggregation groups and up to 8 ports per group |
| Spanning Tree Protocol | 802.1d STP; 802.1w RSTP; 802.1s MSTP; STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect |
| Loopback Detection | Port based; VLAN based |
| Flow Control | 802.3x Flow Control |
| Mirroring | Port Mirroring; CPU Mirroring; One-to-One; Many-to-One; Flow-Based; Ingress/Egress/Both |
| DLDP | Device Link Detect Protocol (DLDP) |
| LLDP | 802.1ab LLDP/ LLDP-MED |
| Grupos IGMP soportados | Supports 511 (IPv4, IPv6) IGMP groups |
| IGMP Snooping | IGMP v1/v2/v3 Snooping; Fast Leave; IGMP Snooping Querier; Static Group Config |
| MVR | Multicast VLAN Registration (MVR) |
| Multicast Filtering | Multicast Filtering |
| MLD Snooping | Multicast Listener Discovery (MLD) Snooping (MLD v1/v2 Snooping; Fast Leave; MLD Snooping Querier; Static Group Config) |
| Limited IP Multicast | 256 profiles and 16 entries per profile |
| VLAN Group | Max 4K VLAN Groups |
| 802.1Q Tagged VLAN | 802.1Q Tagged VLAN |
| MAC VLAN | 12 entries |
| Protocol VLAN | Protocol VLAN (IEEE 802.1v) |
| GVRP | GVRP |
| Voice VLAN | Voice VLAN |
| Prioridad QoS | 802.1p CoS/DSCP priority |
| Colas de prioridad | 8 priority queues |
| Modo de planificación | Strict Priority (SP); Weighted Round Robin (WRR) |
| Queue Weight Config | Queue Weight Config |
| Bandwidth Control | Port/Flow based Rating Limit |
| Storm Control | Multiple Control Modes (kbps/ratio); Broadcast/Multicast/Unknown-Unicast Control |
| ACL - entradas | Support up to 230 entries |
| ACL - Time-Range | Time Slice; Week Time-Range; Absolute Time-Range; Holiday |
| ACL - Time-based ACL | Time-based ACL |
| ACL - MAC ACL | Source MAC; Destination MAC; VLAN ID; User Priority; Ether Type |
| ACL - IP ACL | Source IP; Destination IP; IP Protocol; TCP Flag; TCP/UDP Source Port; TCP/UDP Destination Port; DSCP/IP TOS |
| ACL - IPv6 ACL | IPv6 ACL |
| ACL - Combined ACL | Combined ACL |
| ACL - Rule Operation | Permit/Deny |
| ACL - Policy Action | Mirror; Rate Limit; Redirect; QoS Remark |
| ACL - Binding | Port Binding; VLAN Binding |
| ACL - Actions for flows | Mirror (to supported interface); Redirect (to supported interface); Rate Limit; QoS Remark |
| AAA | Authentication, Authorization, Accounting (AAA) |
| 802.1X | Port based authentication; MAC (Host) based authentication; Authentication Method includes PAP/EAP-MD5; MAB; Guest VLAN; Support Radius authentication and accountability |
| IP/IPv6-MAC Binding | 512 Binding Entries; DHCP Snooping; DHCPv6 Snooping; Dynamic ARP Inspection (DAI); ND Detection; ND Snooping |
| IP Source Guard | 253 Entries; Source IP+Source MAC |
| IPv6 Source Guard | 183 Entries; Source IPv6 Address+Source MAC |
| DoS Defend | DoS Defend |
| DHCP Filter | DHCP Filter |
| Port Security | Static/Dynamic/Permanent Port Security; Up to 64 MAC addresses per port |
| Storm Control (seguridad) | Broadcast/Multicast/Unicast Storm Control; kbps/ratio control mode |
| Port Isolation | Port Isolation |
| Gestión web segura | Secure web management through HTTPS with SSLv3/TLS 1.2 |
| Gestión CLI segura | Secure Command Line Interface (CLI) management with SSHv1/SSHv2 |
| Control de acceso | IP/Port/MAC based access control |
| Soporte IPv6 | IPv6 Static Routing and ACL; IPv4/IPv6 Dual Stack; IPv6 Interface; MLD Snooping; IPv6 neighbor discovery (ND); Path maximum transmission unit (MTU) discovery; Internet Control Message Protocol (ICMP) version 6; TCPv6/UDPv6 |
| Aplicaciones IPv6 | DHCPv6 Client; Ping6; Tracert6; Telnet (v6); IPv6 SNMP; IPv6 SSH; IPv6 SSL; Http/Https; IPv6 TFTP |
| Gestión | Web-based GUI; Command Line Interface (CLI) through telnet; SNMPv1/v2c/v3; SNMP Trap/Inform; RMON (1,2,3,9 groups); SDM Template; DHCP/BOOTP Client; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; IEEE 802.1az Energy Efficient Ethernet (EEE); SNTP; System Log; Dying Gasp; ONVIF; Digital Diagnostic Monitoring (DDM) |
| MIBs | MIB II (RFC1213); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); Radius Accounting Client MIB (RFC2620); Radius Authentication Client MIB (RFC2618); Remote Ping, Traceroute MIB (RFC2925); Support TP-Link private MIBs; RMON MIB(RFC1757, rmon 1,2,3,9) |
| Contenido del paquete | SG2428LP Switch; Power Cord; Rackmount Kit; Rubber Feet; Installation Guide |
| Requisitos del sistema | Microsoft® Windows® 98SE, NT, 2000, XP, VistaTM or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Información de pedido (Host Switch) | Omada Access 28-Port Gigabit Switch with 16-Port PoE+; Model: SG2428LP |
| Módulos SFP compatibles (Single-mode, LC, hasta 20 km) | Gigabit SFP module, Single-mode, LC interface, Up to 20km distance |
| Módulos SFP compatibles (Multi-mode, LC, hasta 550 m) | Gigabit SFP module, Multi-mode, LC interface, Up to 550m distance |
| Modelo SFP | SM311LS |
| Descripción SFP SM311LS | Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1550 nm/RX: 1310 nm, 20 km |
| Modelo SFP | SM311LM |
| Descripción SFP SM311LM | Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1550 nm/RX: 1310 nm, 2 km |
| Modelo SFP | SM321A |
| Descripción SFP SM321A | Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1310 nm/RX: 1550 nm, 20 km |
| Modelo SFP | SM321A-2 |
| Descripción SFP SM321A-2 | Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1310 nm/RX: 1550 nm, 2 km |
| Modelo SFP | SM321B |
| Descripción SFP SM321B | No especificado por el fabricante |
| Modelo SFP | SM321B-2 |
| Descripción SFP SM321B-2 | No especificado por el fabricante |
| Módulo SFP RJ45 | SM331T |
| Descripción SM331T | 1000BASE-T RJ45 SFP Module |
| Media Converter | MC220L |
| Descripción MC220L | Gigabit SFP Media Converter, up to 100 m, chassis mountable |
| Media Converter | MC210CS |
| Descripción MC210CS | Gigabit Single-Mode Media Converter, up to 20 km, chassis mountable |
| Media Converter | MC211CS-20 |
| Descripción MC211CS-20 | Gigabit WDM Media Converter, up to 20 km, chassis mountable |
| Media Converter | MC212CS-20 |
| Descripción MC212CS-20 | Gigabit WDM Media Converter, up to 20 km, chassis mountable |
| Media Converter | MC211CS-2 |
| Descripción MC211CS-2 | Gigabit WDM Media Converter, up to 2 km, chassis mountable |
| Media Converter | MC212CS-2 |
| Descripción MC212CS-2 | Gigabit WDM Media Converter, up to 2 km, chassis mountable |
| Media Converter | MC200CM |
| Descripción MC200CM | Gigabit Multi-Mode Media Converter, up to 550 m, chassis mountable |
Switch gestionable PoE TP-Link SG2428LP Serie Omada 24 puertos Gigabit RJ45 con 16 PoE+ 802.3af/at 4 puertos SFP Gigabit Presupuesto PoE total 150 W con hasta 30 W por puerto Capacidad de conmutación 56 Gbps Gestión Omada Cloud, web, CLI y SNMP Montaje en rack 19 pulgadas
