*PRODUCTO REACONDICIONADO
ESPECIFICACIONES
|
|
D-Matrix-8T (*) |
|
|
Fracarro code |
283133 |
|
|
Front-End |
||
|
N° input |
N° |
8 TV tuners (two tuners coupled to every F input connector) |
|
Input frequency |
MHz |
110-862 (170-862 for the first coax input) |
|
Input level (typical) |
dBμV |
55÷85 |
|
Impedence |
Ohm |
75 |
|
Remote power supply |
Vdc, mA |
12, 200 (max) |
|
Demodulation |
|
DVB-T2, DVB-T or DVB-C |
|
Input step tuning |
KHz |
10 |
|
AFC Range |
KHz |
±400 (DVB-T2/T), ±100 (DVB-C) |
|
|
|
|
|
Output Modulation |
|
|
|
N° of generated mux |
N° |
8 (two group of four adjacent digital modulator) |
|
Trasmission standard |
|
DVB-T |
|
Bandwidth |
MHz |
6, 7, 8 |
|
Carriers |
|
2k |
|
Modulation |
|
QPSK, 16-QAM, 64-QAM |
|
Guard interval |
|
1/4, 1/8, 1/16, 1/32 |
|
FEC |
|
1/2, 2/3, 3/4, 5/6, 7/8 |
|
Spectrum |
|
Normal/Inverted |
|
Operating Mode |
|
Normal, Single Carrier |
|
|
|
|
|
RF Output |
||
|
Output frequency |
MHz |
110÷862 |
|
Output channels |
|
S2÷E69 |
|
Output step tuning |
KHz |
250 |
|
Typical RF output level |
dBμV |
95 |
|
Output level adjustment |
dB |
0÷20 |
|
Flatness |
dB |
± 1.5 |
|
Typical Output MER |
dB |
36 |
|
Spurious rejection |
dBc |
< -50 |
|
|
General features (*) |
|
|
RF mix input |
MHz |
47÷862 |
|
RF insertion loss |
dB |
2.5 |
|
Mains Supply |
Vac, Hz |
230, 50/60 |
|
Typical Power Consumption |
W |
42 (with two CAMs inserted) |
|
Connectors |
Type |
F female (RF), RJ45 (programming via web interface), USB (fw upgrade, TS video file playback) |
|
Common Interface |
|
2 x PCMCIA (Standard EN50221, TS10169) , FlexCAM or STANDARD mode |
|
Dimensions (L.× W.× H) |
mm |
360x230x54 (without CAM inserted) – 385x230x54 (with CAM inserted) |
|
Operating temperature |
°C |
-5 ÷ +55 (without CAM) |
|
Compliant |
|
EN50083-2, EN60065 |
- Level:
- Sin licencia

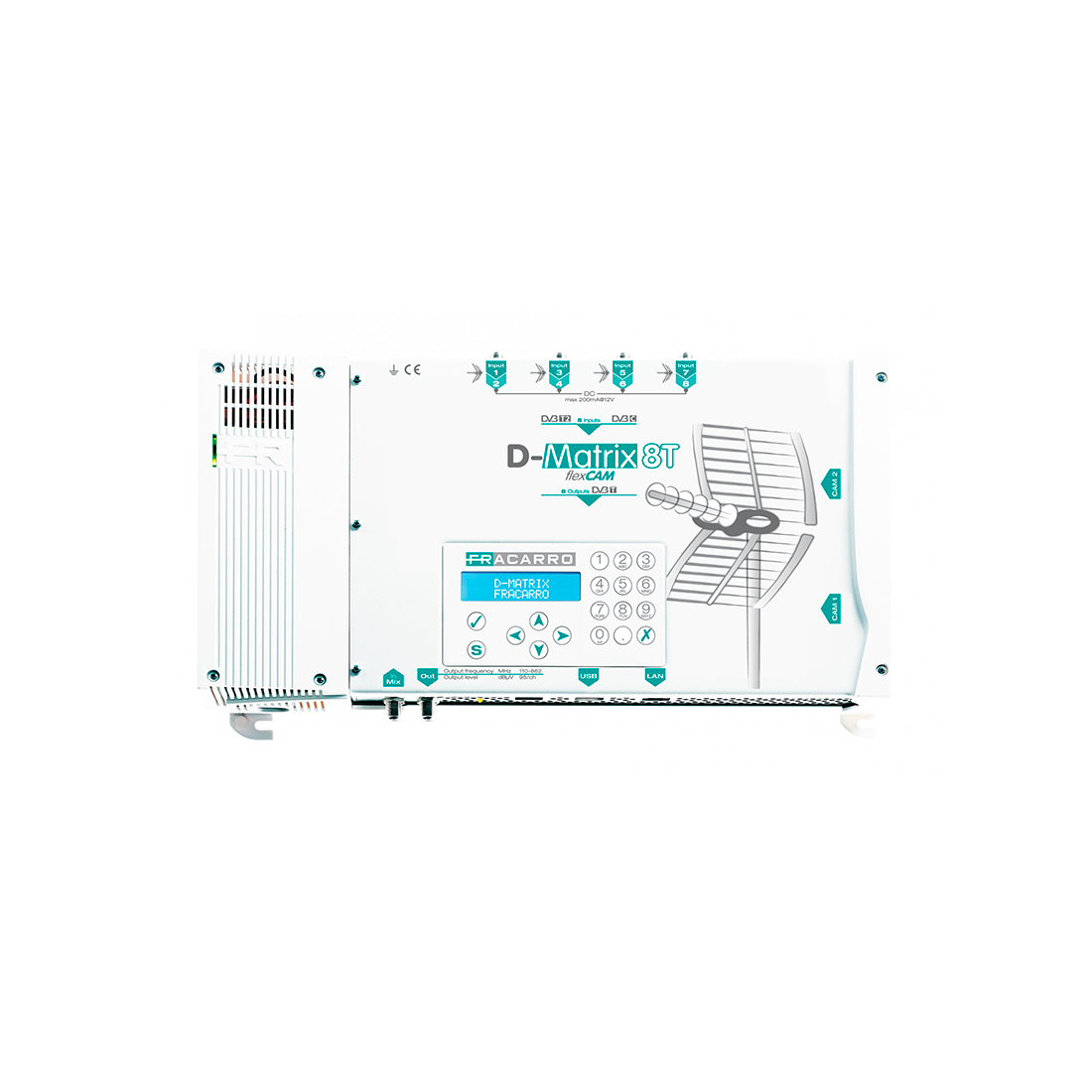

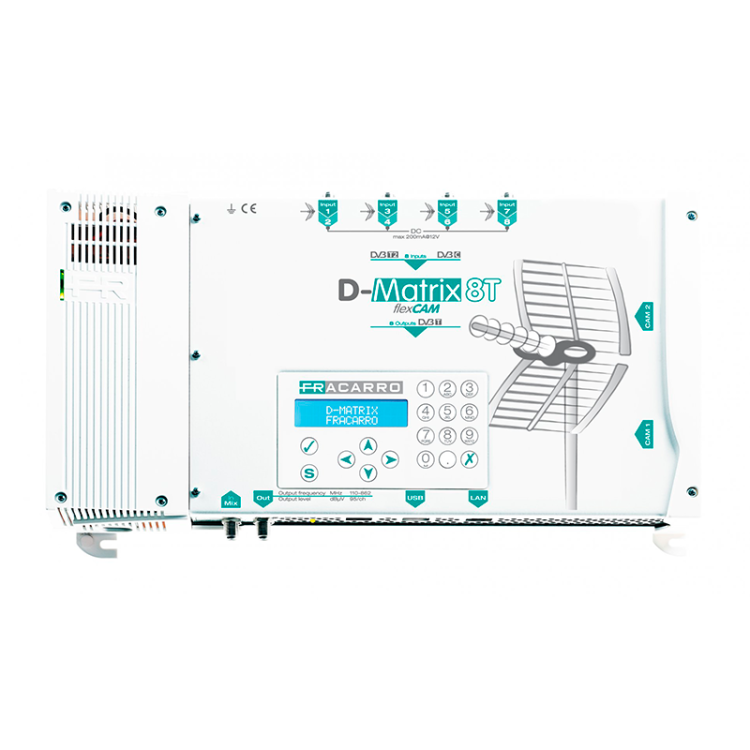

REACONDICIONADO | Central 8in DVB-T/C/ a 8out DVB-T, 2CI
*PRODUCTO REACONDICIONADO | Cabecera transmoduladora compacta con 8 entradas DVB-T/C a 8 salidas DVB-T. Marco independiente con fuente de alimentación incorporada 8 sintonizadores, 8 salidas MUX (DVB-T / C) RF In y RF Out. 2 Common Interface. Gestión web
Garantía hasta 3* años
14 días naturales para devolver el producto
Envíos rápidos en más de 10.000 referencias
