ONT GPON / 4GE/ 1POTS / WIFI 2.4/5GHZ AC / USB. Conector SC/APC

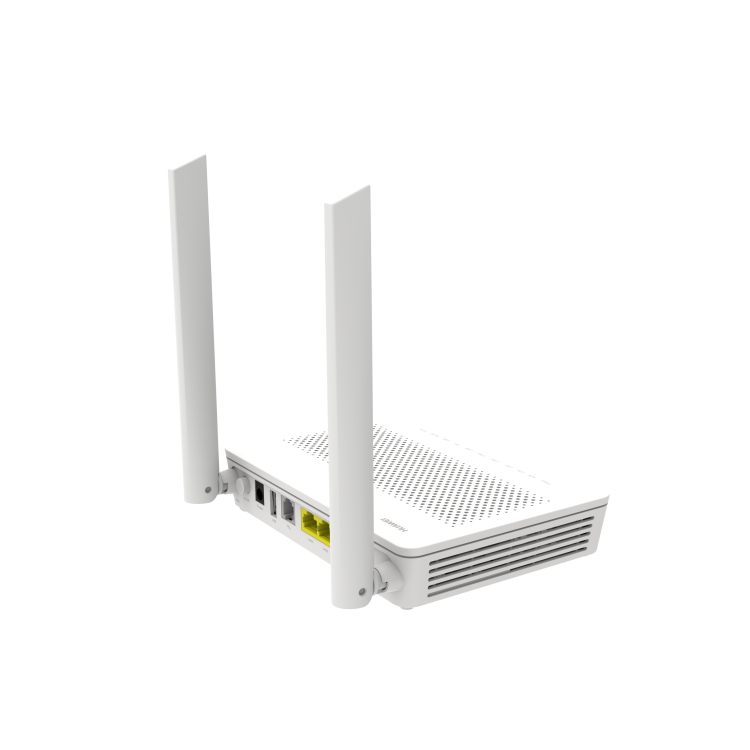

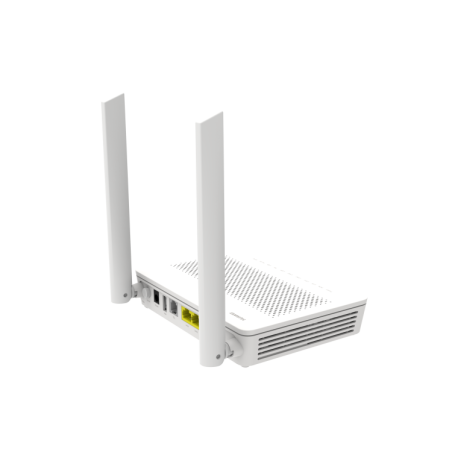

El EchoLife EG8145V5 es un terminal de red óptica (ONT) de routing inteligente integrado en la solución FTTH de Huawei. Mediante el uso de la tecnología GPON, se proporciona acceso por banda ultraancha a los usuarios domésticos. El EG8145V5 es compatible con las bandas de doble frecuencia 802.11ac y cuenta con funciones de reenvío de alto rendimiento para garantizar una excelente experiencia con servicios de voz, Internet y vídeo de alta definición. Estas características hacen del EG8145V5 una opción perfecta para el acceso por banda ancha.

Especificaciones

INTERFACE PARAMETERS
GPON Port	Class B+ Receiver sensitivity: -27dBm ~ -29dBm Overload optical power: -8 dBm Wavelengths: US 1310nm, DS 1490nm Wavelength blocking filter (WBF) of G.984.5 Flexible mapping between GEM Port and TCONT GPON: consistent with the SN or password authentication defined in G.984.3 Bi-directional FEC SR-DBA and NSR-DBA Type B (single-homing&dual-homing)
ETHERNET Port	Ethernet port-based VLAN tags and tag removal 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission QinQ VLAN Limit on the number of learned MAC addresses MAC address learning Auto-adaptive 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s Interoperable with 3rd party device
POTS Port	Maximum REN: 4 G.711A/μ, G.729a/b, and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF Emergency calls (with the SIP protocol)
USB Port	USB 2.0 FTP-based network storage File/Print sharing based on SAMBA DLNA function
WLAN	IEEE 802.11 b/g/n (2.4G) IEEE 802.11 a/n/ac (5G) 2 × 2 MIMO (2.4G&5G) Antenna gain: 5 dBi WMM/Multiple SSIDs/WPS 2.4G&5G concurrent Air interface rate: 300 Mbit/s (2.4G); 867 Mbit/s(5G)

PRODUCT FUNCTION
Smart Interconnection	Smart Wi-Fi coverage SIP/H.248 autonegotiation Any port any service Parental control L2/L3 (IPv4) forwarding: 1G uplink, 2G downlink
Smart O&M	IPTV video quality diagnosis eMDI Rogue ONT detection and isolation from the OLT Call emulation, and circuit test and loop-line test PPPoE/DHCP simulation testing WLAN emulation
Layer 3 Features	PPPoE/Static IP/DHCP NAT/NAPT Port forwarding ALG, UPnP DDNS/DNS server/DNS client IPv6/IPv4 dual stack, DSLite, and IPv6 SPI Static/Default routes Multiple services on one WAN port
Security	SPI firewall Filtering based on MAC/IP/URL addresses Support WEP, 128-bit WEP, WPA2-PSK, WPAPSK, WPA
Common O&M	OMCI/Web UI/TR069 Variable-length OMCI messages Dual-system software backup and rollback
Multicast	IGMP v2/v3 proxy/snooping MLD v1/v2 snooping
Smart Service	Scheduled Wi-Fi shutdown Smart Wi-Fi sharing: Portal/802.1x authentication
Power Saving	Indicator power saving COC V5
QoS	Ethernet port rate limitation 802.1p priority SP/WRR/SP+WRR Broadcast packet rate

Detalles del producto

HUAWEI

ONT GPON / 4GE/ 1POTS / WIFI 2.4/5GHZ AC / USB. Conector SC/APC

Name: ONT GPON / 4GE/ 1POTS / WIFI 2.4/5GHZ AC / USB. Conector SC/APC
Brand: HUAWEI
SKU: EG8145V5

EG8145V5

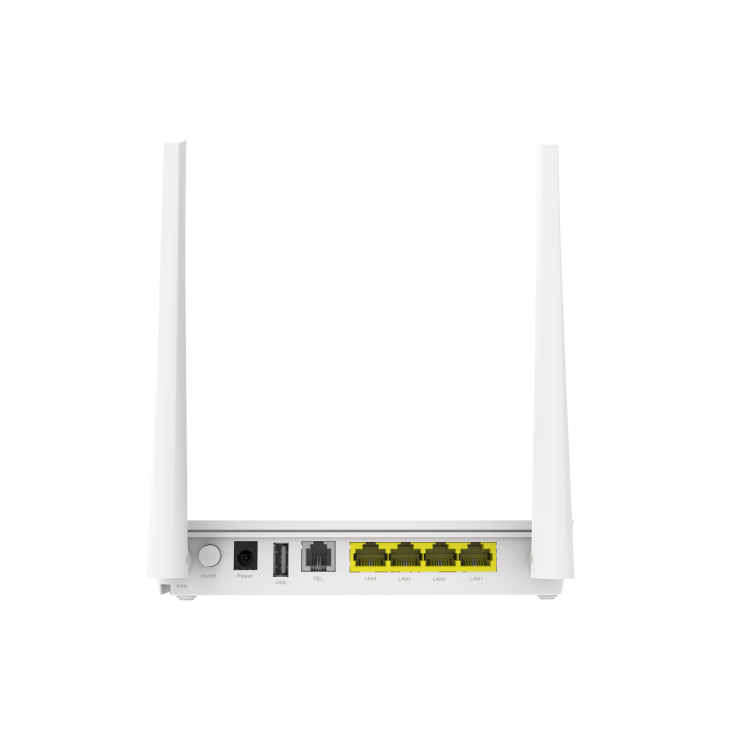

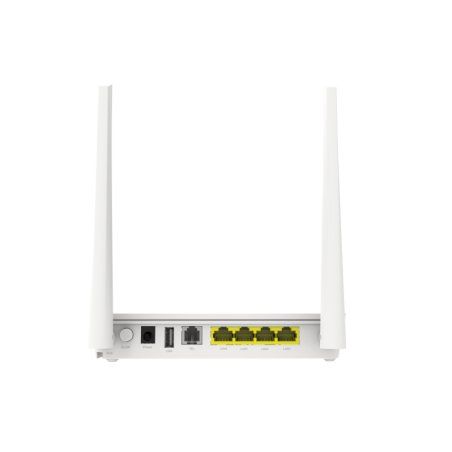

Puertos: 1 POT + 4 GE + 1 USB + Wi-Fi AC. Antena externas: Dispone de dos antenas externas. WIFI: Es un terminal dual band, funciona en las dos bandas, banda de 5G y 2.4G MIMO: MIMO 2*2 en ambas bandas. WLAN: En la banda de 5G y en concurrencia se podría conseguir una velocidad en el interfaz aire, WIFI, de 867 Mbit/s (velocidad teórica nominal)
