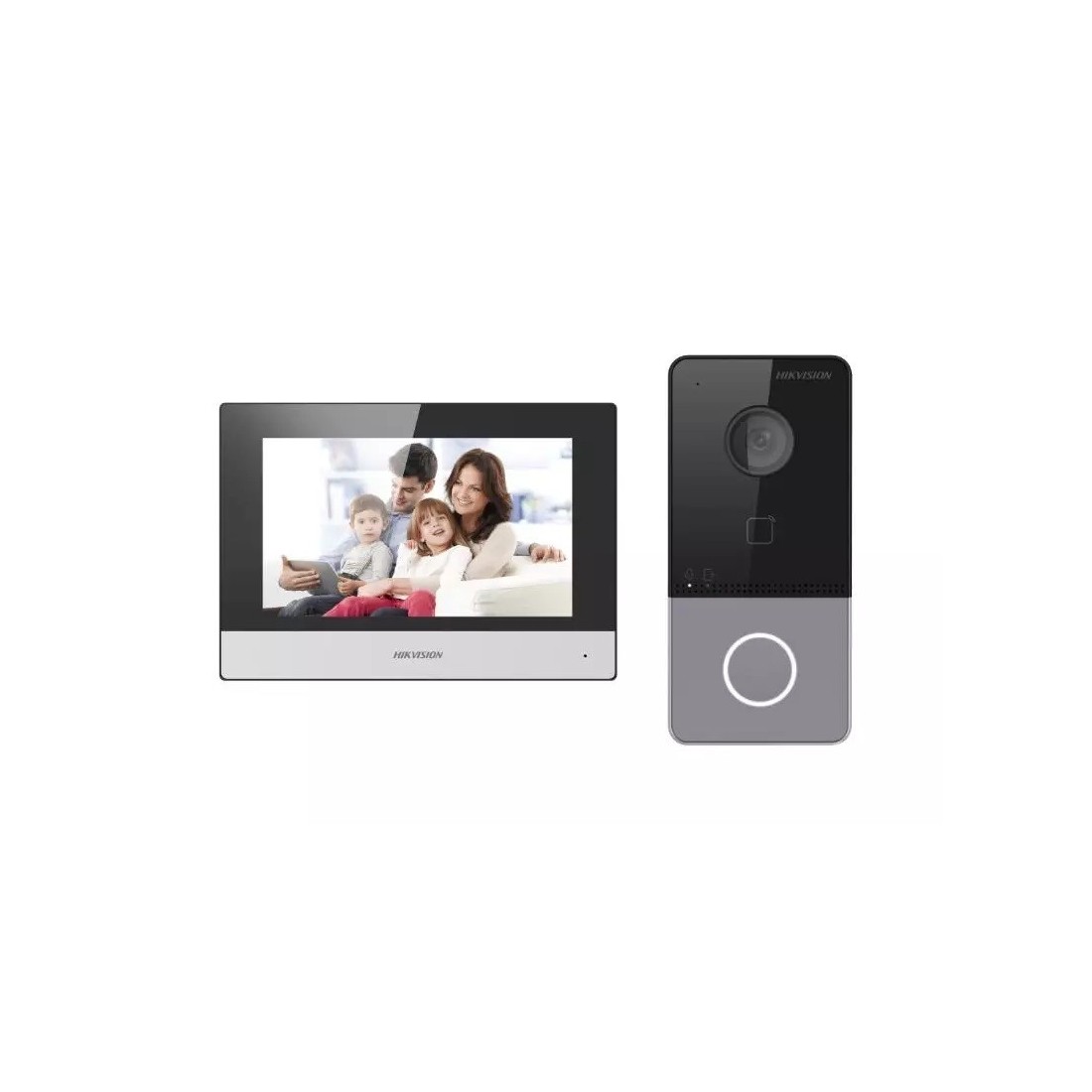

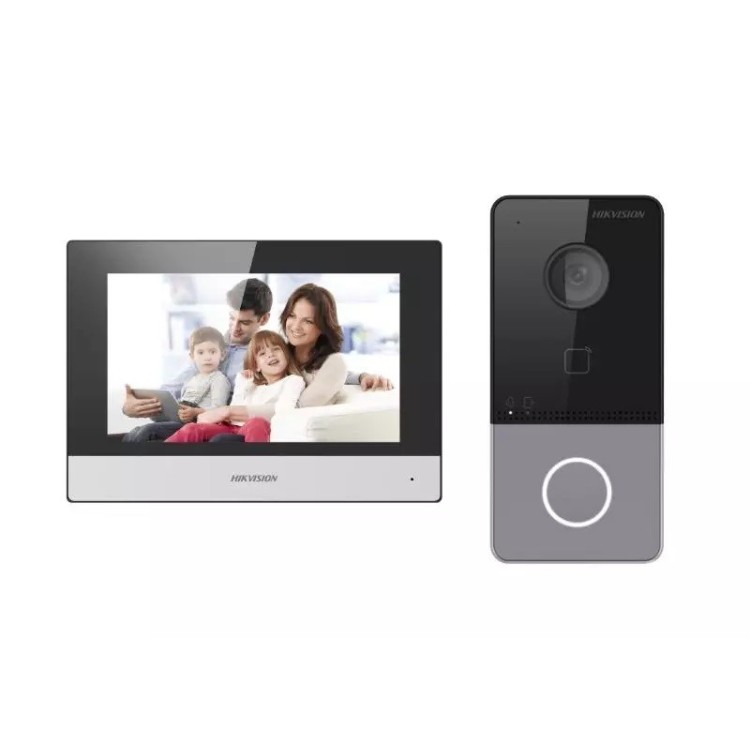

Door station

Operation system

Embedded Linux operation system

Flash

32 MB

RAM

128 MB

Door station

Camera

2MP HD camera

Night vision

Low illumination IR supplement mode:3 m

Backlight compensation

Support

Digital noise reduction

Support

WDR

True WDR

Field of view

Horizontal: 129° Vertical: 75°

Video Compression Standard

H.264

Stream

Main stream: 1080p@30fps, 720p@25fps

Sub stream: D1@25fps

Motion detection

Support

Flash avoid frequency

50 Hz, 60 Hz

Door station

Audio input

Built-in omnidirectional microphone

Audio output

Built-in loudspeaker

Audio quality

Noise suppression and echo cancellation

Audio compression standard

G.711 U

Audio compression Rate

64 Kbps

Audio intercom

Two-way audio communication

Door station

Network protocol

TCP/IP, RSTP

Wired network

10/100 Mbps Ethernet

Door station

RS-485

1

Alarm input

4

Debugging port

1

Grounding

1

TAMPER switch

1

Door station

Power consumption

＜ 10 W

Working temperature

-40° C to 53° C(-40° F to 127.4° F)

Working humidity

10% to 95%

Dimension

138 mm × 65 mm × 27 mm

Installation

Surface mounting

Protection level

IP65

Indicator

2

Power supply

IEEE802.3af, standard PoE 12 VDC

Indoor station

Operation system

Embedded Linux operation system

Memory

128 MB

Flash

32 MB

Indoor station

Display screen

7-inch colorful TFT screen

Display resolution

1024 × 600

Operation method

Capacitive touch screen

Indoor station

Audio input

Built-in omnidirectional microphone

Audio output

Built-in loudspeaker

Audio quality

Noise suppression and echo cancellation

Audio compression standard

G.711 U

Audio compression Rate

64 Kbps

Indoor station

Wired network

10/100 Mbps self-adaptive

Wireless network

Wi-Fi 802.11 b/g/n

Protocol

TCP/IP, SIP, RTSP

RS-485

1 RJ-45 10/100 Mbps self-adaptive

Indoor station

RS-485

1

Alarm input

8-ch alarm inputs

Relay output

2

TF card

Max to 32 G, SD 2.0 or lower version

Indoor station

Power consumption

≤ 6 W

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

10% to 90%

Dimension (L x W x H)
